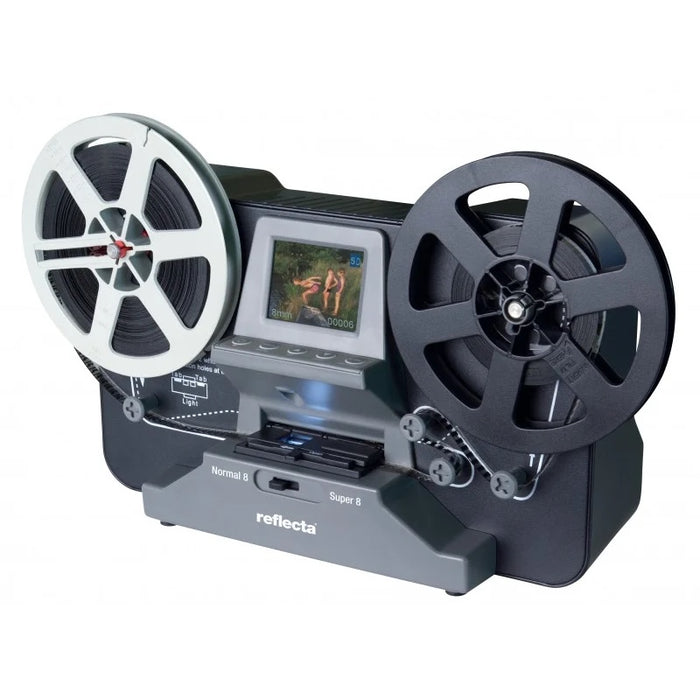

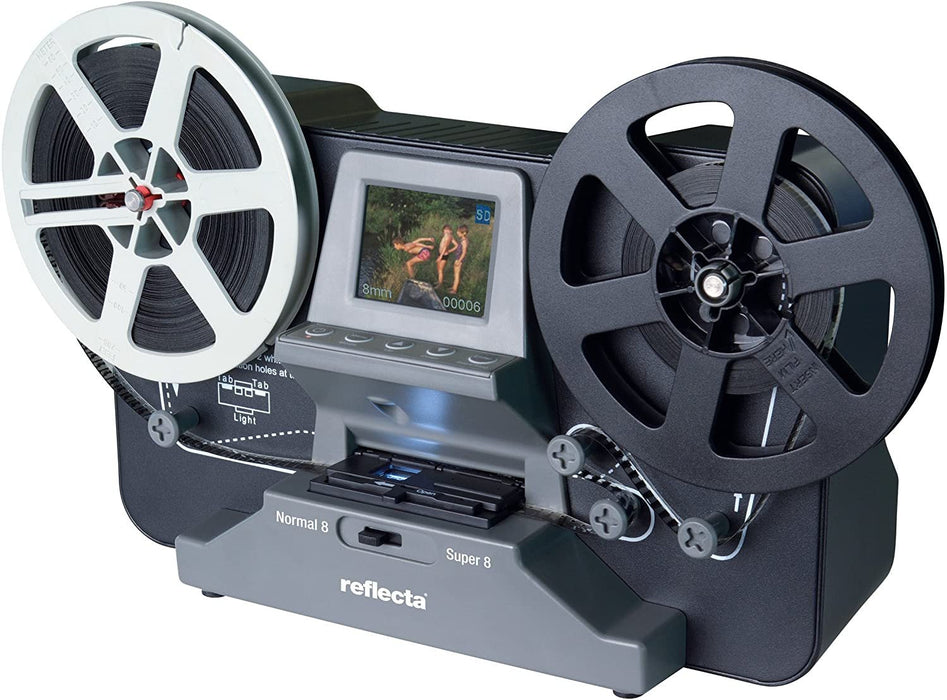

Reflecta Film Scanner Super 8 and Normal 8

It has never been easier to digitise and save old film treasures: Select between Regular 8 and Super 8, load the film into the scanner and start it.

The film is scanned frame by frame at a rate of two images per second and is written as an MP4 video in HD quality directly onto an SD card.

No computer is needed! You can play the digitised film on all smartphones, tablets or PCs. Braun Film Scanner Super 8 - Normal 8 can also be connected directly to a TV to playback the movies

Product Features

Film Type: Super 8 and Regular 8 - max. reel size 5 inch (12,7 cm)

Image Sensor: 3.53 Megapixels (2304 x 1536) 1/3'' CMOS

Resolution: 1440 x 1080 p @ 20fps (MP4)

Image Area: adjustable in x-, y- and z-axis

Exposure control: Auto/Manual (-2.0 to 2.0)

Scanning Speed: 2 frames per second - ca. 30 minutes for a reel of 15 meters

External Memory: SD/SDHC cards with up to 32 GB (not included)

Display: 2,4 inch (6,1 cm) LCD

Light Source: LED

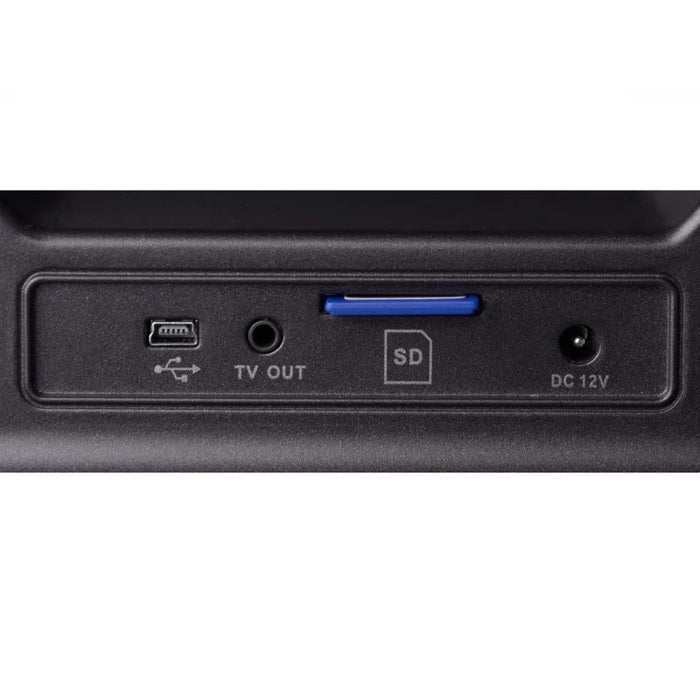

PC Interface: USB 2.0 (for data transfer)

TV-Out: NTSC / PAL

Film Format: MP4

No possibility to capture audio

Technical Data

Dimensions: ca. 269 x 166 x 114 mm

Weight: 1.41 kg

Power Supply: adapter DC 12V

System Requirements

o A stand-alone device that does not require a computer

Contents

Scanner

Power Supply

USB cable

TV-out cable

5-inch empty reel

2x adapters for Regular / Normal 8

Brush

User's manual
